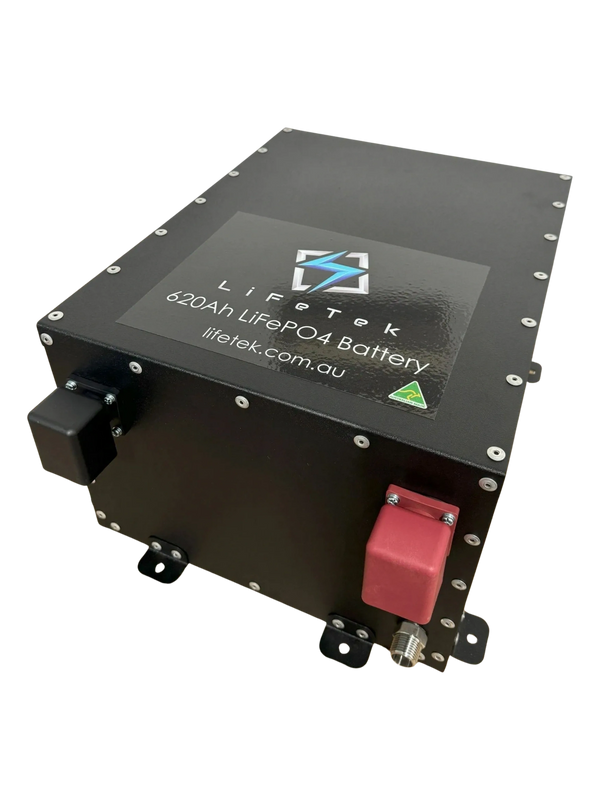

VanLiFe 620Ah
LiFePO4 12.8v Suitable for “12v” systems
The VanLiFe range is a highly capable battery, able to power a 3500w inverter. With its impressive power, it provides reliable and efficient electricity to your devices and appliances, making it a convenient and essential addition to any travel or off-grid setup.
$3,808.00
Description and Specifications
BMS continuous discharge: 300A
BMS continuous charge: 300A
BMS over current protection: 320A for 10 seconds, reset 35 seconds.
Low voltage discharge shut down: 10v restart 10.5v
High Voltage charge disconnect: 15v restart 14.8v
Low temp charge disconnect: 1c reset 2c
Low temp discharge disconnect -20c reset -15c
High temp charge disconnect: 55c reset 50c
High temp discharge disconnect: 60c reset 55c
Charging:
Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)
Absorption: 14.2V – 14.6V (ideal: 14.4V)
Float: 13.4V – 13.6V (ideal: 13.5V)
The Automotive grade cells used are rated 8000 cycles @ 70% DOD
Terminal size: M10
Vent outlet thread: 1/2 inch male BSP thread
Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant
Weight 54.5kgs
Capacity Tests At 300A Constant BMS Rated Load
Our 620Ah Power House
Drawing 300 amps constantly all the way from full until our inverter cut off delivered 645Ah of capacity.
If you max the BMS at 300amps the entire time you use the battery until it is flat we guarantee the battery will at least deliver the rated 620Ah.
