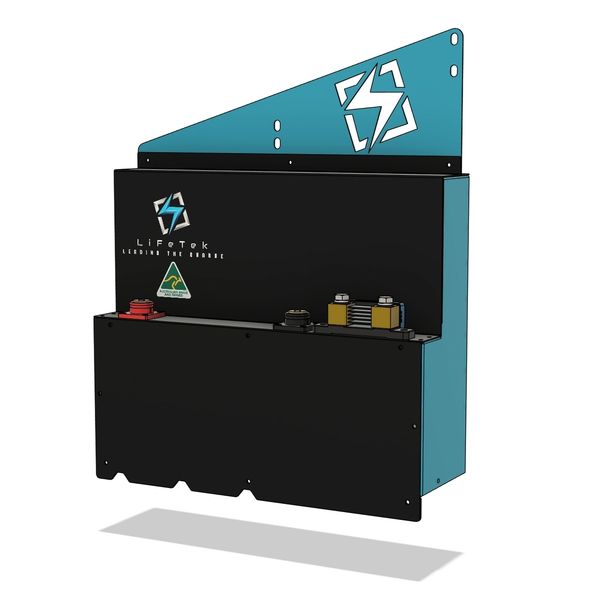

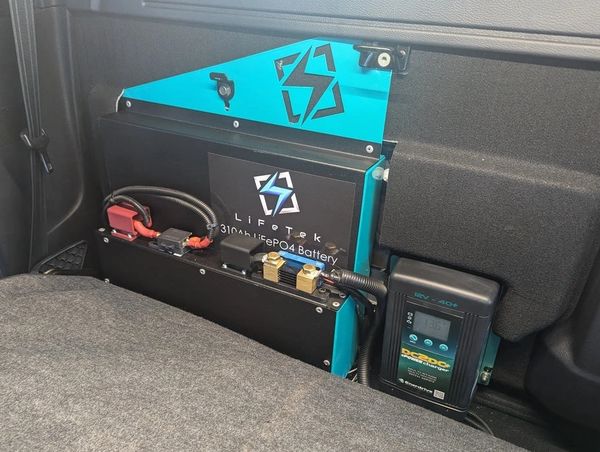

LiFeTek Ranger/ Ranger Raptor Battery
100ah $1,385.00
200ah $1,967.00
280ah $2,217.00
310ah $2,300.00
$1,385.00 – $2,300.00
Description and Specifications
Suits Next Gen Ranger, Raptor & PX
Specs:
LiFePO4 12.8v Suitable for “12v” systems
BMS continuous discharge: 300A
BMS discharge over current protection: 320A for 10 seconds, reset 35 seconds.
310Ah & 280Ah model charge over current protection:
320A for 10 seconds, reset 35 seconds.
200Ah model charge over current protection:
205A for 10 seconds, reset 35 seconds.
Low voltage discharge shut down: 10v restart 10.5v
High Voltage charge disconnect: 15v restart 14.8v
Low temp charge disconnect: 1c reset 2c
Low temp discharge disconnect -20c reset -15c
High temp charge disconnect: 55c reset 50c
High temp discharge disconnect: 60c reset 55c
Charging:
Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)
Absorption: 14.2V – 14.6V (ideal: 14.4V)
Float: 13.4V – 13.6V (ideal: 13.5V)
Terminal size: M10
310Ah Automotive grade cells used are rated 8000 cycles
280Ah Automotive grade cells used are rated 6000 cycles
200Ah Automotive grade cells used are rated 3000 cycles
100Ah Automotive grade cells used are rated 3000 cycles
310Ah weight 29Kgs
280Ah weight 28.8Kgs
200Ah model weight 22Kgs
100Ah model weight 12Kgs
